Lesson 18 – The Moving Average

In our last lesson we gave an introduction to technical indicators which started our latest series of lessons on how to use these in your trading. In this lesson we are going to start with looking at one of the most popular technical indicators, the moving average.

There are several different types of moving averages which we are going to explore here, all of which are used by traders to try and smooth out the price action of a financial instrument, and get a better feel for the longer term direction without all the noise that is often associated with just looking at price. In addition to getting a better feel for the longer term trend of a financial instrument, moving averages are also used to spot potential support and resistance levels, and are often used in conjunction with one another to generate buy and sell signals.

The Simple Moving Average:

The simple moving average is the most basic of the moving averages and is calculated by taking the past x number of points averaging them, and then plotting the resulting line on a chart. The reason it is called a moving average is because as new data points become available the average moves forward to incorporate the new data point and drops the last data point in the series.

For example, if a trader plots a 10 day moving average on a chart the last 10 days of trading are averaged to come up with the most recent point plotted on the moving average line on the chart. On the next day of trading the data point which occupied the first day used in the above moving average is dropped from the equation, the data point which was day two in the equation becomes day 1, and the next day of trading becomes the 10th data point in the equation.

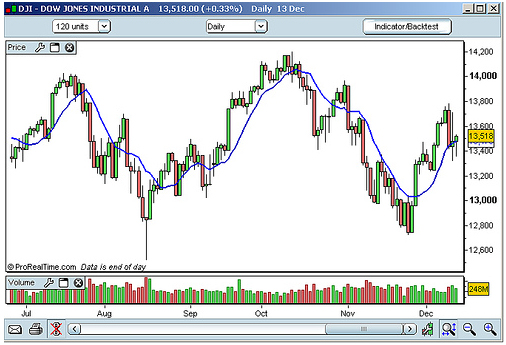

Here is what a Simple Moving average Looks like on a Chart:

Here is an example of how it is calculated:

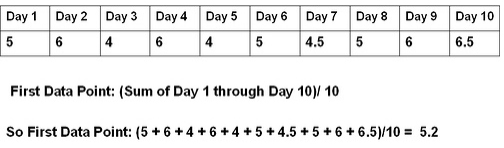

Data Point 1

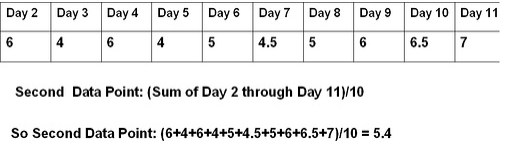

Data Point 2

I included this example here so you can simply have a basic understanding of how the average is calculated, however any charting package which you use should automatically do the calculations for you

The Exponential Moving Average:

Critics of the simple moving average argue that it is too simple in the sense that it gives the same weight to each point in calculating the moving average. The problem with this it is argued is that the more recent data points deserve a greater weighting in the formula as they are more relevant to the future price action of the instrument.

To solve this problem traders came up with the exponential moving average, which gives more weight to the more recent price points in calculating the moving average line. Whatever chart package that you end up using should automatically calculate the exponential moving average for you but for those who want to know the formula for doing so is below:

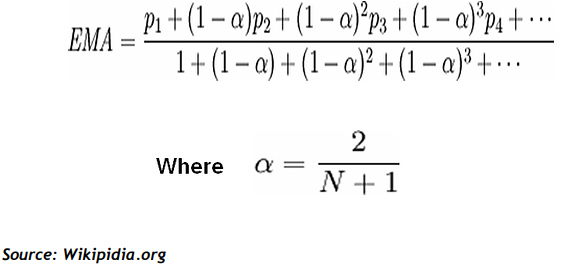

Exponential Moving Average Calculation:

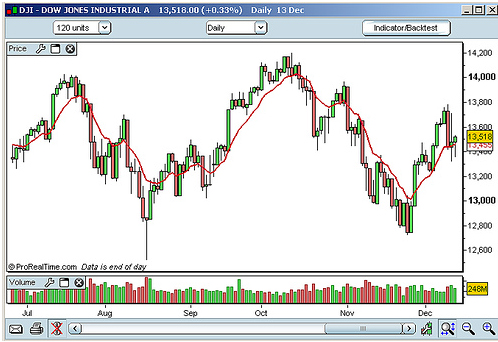

Example of an Exponential Moving Average Plotted on a Chart

When the simple moving average and the exponential moving average are plotted together on a chart you can see that the exponential average reacts faster to the most recent price action

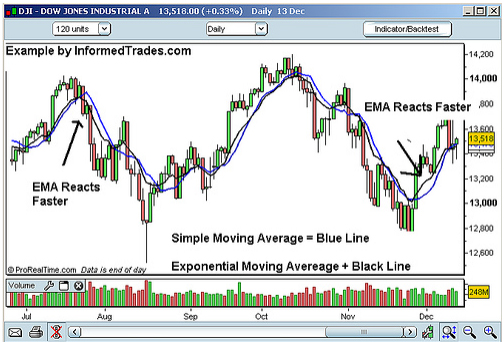

Example Comparing EMA with SMA:

Moving averages can be created from any number of trading periods however the most commonly used are the 200 day moving average and the 50 day moving average followed by the 15, 20, and 100 day moving averages.

Whether traders use the simple or exponential moving average normally depends on trading style and the financial instrument that one is trading. As the simple moving average is slower to react than the exponential moving average traders will often use the SMA for trading longer term moves and EMA’s for shorter term moves. Lastly traders will often look at how different financial instruments have reacted in the past using both types of moving averages and then pick the one that has best represented the types of moves they are trying to trade.
